Googol's E-series embedded is an standalone all-in-one embedded motion controller developed based on integration of PC104 x86 main board, motion control board, terminal board, all in one structural system, and thus has the advantages of smaller size, compact wiring, thus producing higher reliability throughput. It is easy to upgrade, install and maintain, thus the reliability of the equipment operating under adverse industrial environments, such as humid, dusty, and shacking, etc, are greatly enhanced.
Features
High performance DSP, FPGA technology, PC104 main board
Be applicable for Googol's 2/3-axis generic or specific motion control bards.
Different interfaces such as USB, RS232 / 485, Ethernet, DNC / floppy drive, extended I/O, control panel, touch screen, keyboard, mouse etc are provided to facilitate tuning and expansion
DOS OS support USB, USB bootable
Advantages due to the integration of embedded motion controller and terminal board:
1) No need to use traditional "embedded motion controller + terminal board" structure, better control functions, lower cost.
2) Reliability of the equipment operating under adverse industrial environment is greatly enhanced.
3) Less wiring to facilitate installation.
4) Space-saving due to its compact size.

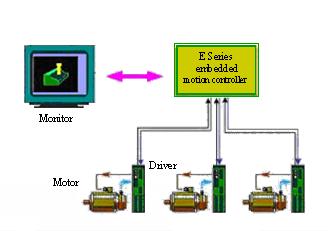

Schematic Drawing
Technical Specification:
(I) Motion Control Board
Input/Output Control:
Control up to 3 servo/stepper axes, 2-channel opto-isolated limit switch signal and 1-channel opto-isolated driver alarm signal input for each axis
1-channel opto-isolated drive enabling signal and 1-channel drive resetting signal output for each axis
Free combination of 3-channel 16-bit resolution analog voltage output signal or pulse output signal (can be pulse + direction, positive/negative pulse mode)
4 channels of encoder feedback (encoder sampling frequency up to 4M Hz, 3 channels are axis encoder signal, 1 channel is auxiliary encoder signal) and 3 channels of axis encoder INDEX signal capture.?
