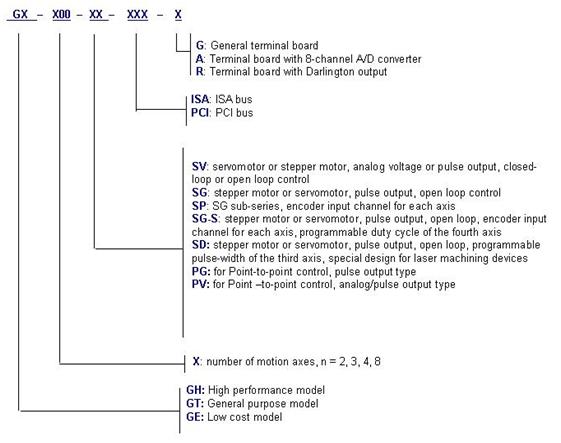

| Nomenclature: |
|
 |
| Motion Controller: |
1. List of Motion Controllers
Type |
Model Number |
No. of Axes |
Output mode |
Feedback
Input |
Bus Supported |
Network Support |
Point-to-point
Motion
Control |
General
Purpose
model |
GE-X00-PG |
2, 4 |
Pulse |
4/2
encoder
input |
ISA/PC104 (PCI) |
Yes (No) |
Low cost model |
GE-X00-PV |
2, 4 |
Analog /Pulse |
4/2
encoder
input |
ISA/PC104 (PCI) |
Yes (No) |
General
Purpose
model |
GE-800-PV |
8 |
Analog/Pulse |
8
encoder
input |
ISA/PC104 |
Yes (No) |
General
Purpose
model |
GE-800-PG |
8 |
Pulse |
8
encoder
input |
ISA/PC104 |
Yes (No) |
Continuous trajectory Motion Control |
General purpose model
|
GT-X00-SV |
2, 4, 8 |
Analog /Pulse |
8/4/2 encoder input, 2 channels auxiliary encoder input |
ISA/PC104 (PCI) |
Yes (No) |
GT-X00-SG |
2, 4, 8 |
Pulse |
2 channels auxiliary encoder input |
ISA/PC104 (PCI) |
Yes (No) |
GT-X00-SP |
2, 4, 8 |
Pulse |
8/4/2 encoder input, 2 channels auxiliary encoder input |
ISA/PC104 (PCI) |
Yes (No) |
GT-X00-SG-S |
2, 4 |
Pulse |
4/2 encoder input, 2 channels auxiliary encoder input |
ISA/PC104 (PCI) |
Yes (No) |
Low cost model |
GE-X00-SV |
2, 3, 4 |
Analog /Pulse |
4/3/2 encoder input, 1 channel auxiliary encoder input |
ISA/PC104 (PCI) |
Yes (No) |
GE-X00-SG |
2, 3, 4 |
Pulse |
4/3/2 encoder input, 1 channel auxiliary encoder input |
ISA/PC104 (PCI) |
Yes (No) |
2. List of Data Collection Cards
Type |
Number of Axes |
Output mode |
Bus |
GO-400-PCI |
4 |
Analog |
PCI |
GO-400-ISA |
4 |
Analog/pulse |
ISA |
3. List of Network Expansion Module
Model Number |
Description |
Network Type Supported |
GPROFI – DPS |
Profibus secondary card |
Profibus |
GETHERNET |
Ethernet network communication card |
Ethernet |
RS485CPU |
RS485CPU card |
RS485 |
|
|
